Carb gasket kit / rebuild kit for Dellorto VHB29, VHB30, VHB24 and VHB26 carbs

Carb overhaul kit, fuel filter FUA60888 and float bowl seal FUA90001 available separately to this seal kit. As this kit is intended for several different carbs you may have gaskets or O rings remaining after rebuilding. More information on rebuilding your VHB carb can be found here.

 17939950 GU17939950 17 93 99 50
 1793 9950 1793.9950 17.93.99.50

Guzzi Base Workshop Manual for all V35 & 50 models. 134 pages covering the basics for all V35 & V50 models

Much of the information in this manual is also relevant to V65, V75 and 750 small twins. Use this manual in combination with the relevant supplement if your small twin isn't a V35 / V50 mark 1 or 2.
This manual includes common torque settings for small twins.

 23920181 GU23920181 23 92 01 81
 2392 0181 2392.0181 23.92.01.81

Dimensions:
A4 - 134 pages black & white

UFI 25 531 00 cartridge oil filter for 1989 on small block engines. See TOA19001 for a inexpensive tool to loosen and tighten the dipstick, If this item is out of stock we do stock a like for like replacement, which is this item SIA27301 .

For an oil change we also recommend 1x ENA90444 (Oil filter cover O ring), 1 x SIA10070 (large sump drain crush washer), 1 x SIA10900 (small sump drain crush washer) and 1 x SIA12200 (filter cover crush washer). Some 750 XPA models use SIA19530, we advise you to check your old filter before ordering. Also known as Guzzi ref. 2A000633

 27153085 GU27153085 27 15 30 85
 2715 3085 2715.3085 27.15.30.85

Dimensions:
120mm x 45mm diameter overall

Air filter, flat paper cartridge type

See SIA10425 for a reusable performance air filter

AP8104242

Dimensions:
115mm x 155mm x 28mm

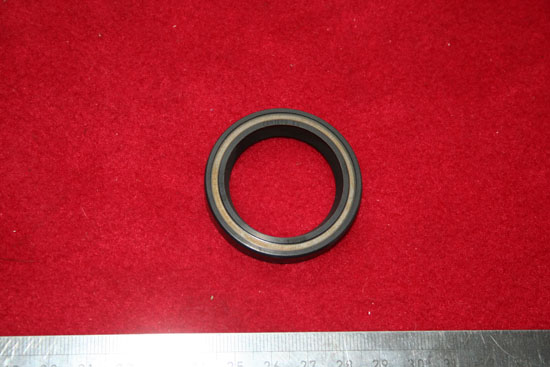

Final drive inner output seal

For Breva 750 from frame no. LL111908

90407591-z 90407591 GU90407591 90 40 75 91
 9040 7591 9040.7591 90.40.75.91

Dimensions:
95mm OD

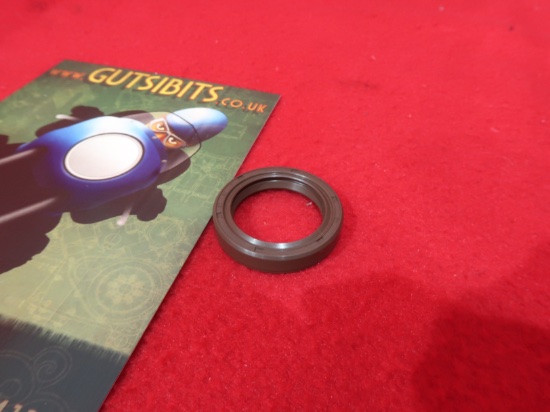

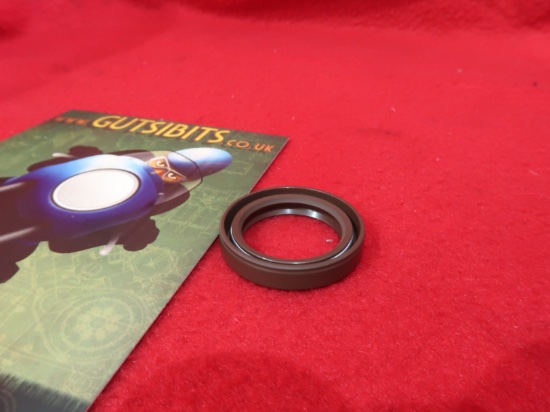

Fork seal

2 required per pair of forks, no need to stack two seals per leg. Replaces Guzzi refs. 90403447, 90403448, 90403546

 90403449 GU90403449 90 40 34 49
 9040 3449 9040.3449 90.40.34.49

Also fits Gilera Runner, Benelli Sei 900

Dimensions:
35mm x 47mm x 7/9mm

Brembo brake master cylinder overhaul kit for handlebar, undertank (cable operated) mounted, handlebar mounted and rear PS 12 master cylinders. Contains seals, brake grease, spring and piston. PS12 handlebar master cylinder fitted to early 850 and 1000 models. PS12 rear master cylinder fitted to Nevada 750

This seal kit is also known as 082039797. NB repair kit instructions refer to rear master cylinder. To fit this to a PS12 handlebar mounted cylinder you will need to punch the old piston out using a thin drift through the hole at the banjo bolt end of the master cylinder. Carefully note the order of the ring and washer as the piston comes out and replace with components from kit. Brembo no. 110279720. See this link for help with fitting this kit

 17659352 GU17659352 17 65 93 52
 1765 9352 1765.9352 17.65.93.52

Also fits Ducati 500 SL Pantah, Ducati 350/500 Twin GTV, Ducati 350/500 SL Pantah, Benelli 500 Quattro, Benelli 504 Sport, Benelli 250 2C, Benelli 900 Sei, Laverda Montjuic, Harris F1

Dimensions:
Solid piston 12.7mm OD x 65mm

Sump baffle or sloppage plate manufactured in the UK from stainless steel. It prevents oil starvation under heavy acceleration, especially when riding up steep hills and extends the life of the big ends. It will also help prevent 'heavy breathing', excessive oil misting and the resulting loss of oil which often occurs on big Guzzi twins when used in the upper RPM range. Includes a cut out for the oil filter and dipstick

To fit this sump plate you will need a pair of sump gaskets (ENA14036). This part is also known as a windage plate. Note that deep sump ENA14005 is not compatible with this plate

Dimensions:
1.8mm thickness

Brembo caliper cover for models with obsolete twin bleed calipers

P9 caliper cover includes cutout each side for bleed nipple. Also known as Guzzi ref. 14654700, 17654760. Please note you may need to trim away the four moulded lugs at the bottom of the cover otherwise these may clash with your pad pins

 20325410 GU20325410 20 32 54 10
 2032 5410 2032.5410 20.32.54.10

One metre of copper core HT lead, this is superior to the more commonly available carbon core lead

Sold by the metre, one metre is enough for two leads on most models with coils under the fuel tank. For models with coils under the side panel you will need two metres. See ELA14715 and ELA14714 for plug caps and ELA20001 for coil screw cap. See ELA00001 for crimp on HT lead connector

Dimensions:
100cm
